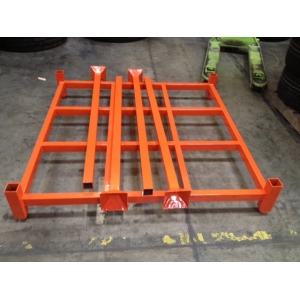

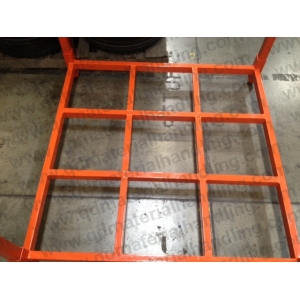

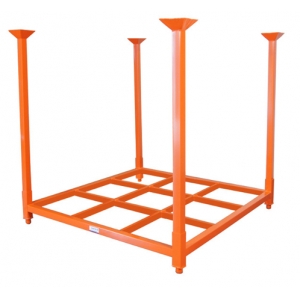

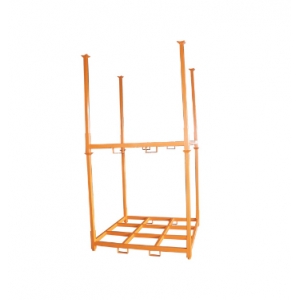

Light Truck And Passenger Stackable Rack 60"x 60"x 60"sturdy, has a weight capacity of 2525 lbs/1147 kg

Product Advantage:
A. Welded metal structure, strong and durable
B. Demountable, easy to assemble
C. Can be stacking 4 high, folded to store and save space
D. Load capacity up to 1147kgs
E. Improve product visibility
F. Four removable upright to save space

Specification:

Model:KWR-22
Size: W60" X D60" X H60"
W1524 X D1524 X H1524 mm
Loading Capcity: 1147KG, 2525lbs.
Loading tire numbers(tire capacity): 28-35pcs
Stacking Capacity: 4-5 Layers
Max. stacked (open):5
Max. stacked (close):20
Own weight:115 lbs,52 kgs
Folding and stacking design
Powder coating finishing
Optional: Forklift pocket
Optioanl: Wire mesh bottom
Optional color: Blue, Orange, red, yellow or according to your requirement.

Place an order now please kindly contact

Erica Wang by info@qdmaterialhandling.com,  David Zhang by sales@qdmaterialhandling.com with the Model No.,Size,Material,loading capacity and surface treatment you need.

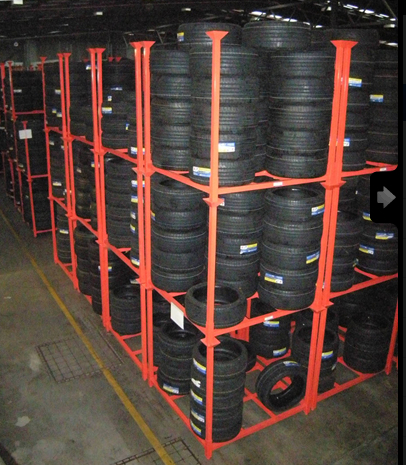

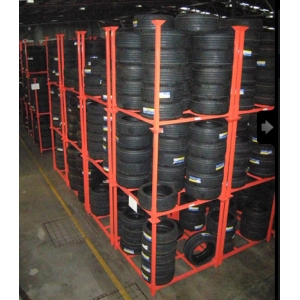

The passenger and light truck stacking rack can be used for stacked storage of all types of passenger and light truck tires. The 60"X60" deck is designed to hold 4 or 5 stacks of 7 or 8 tires, depending on tires diameter. For tires measuring 16" and under, 5 stacks can be stored per pallet, and for tires measuring 17" and over, 4 stacks. This is one of the most economical tire storage systems, particularly in terms of initial outlay. It is also the most popular storage system in the United States. In addition, this molular rack system can be used to meet a number of other(stack rack) warehousing requirements.

Movable metal stacking tyre rack by direct manufacturer

Production Description

-Stackable and foldable type and saving space.

-Tyre racks provide a convenient, economical alternative to pallet racks.

  These forkliftable storage racks accept pallet storage or can be used as a pallet itself.

-Tyre racks have various capacities and are generally made of tubular steel.

-Tubular posts allow stacking of up to (4) units high.

-Easy modular assembly, posts snap into sockets on base, no other tools required.

Rangeof Application

It is widely used in any warehouse configuration, transportation and factory storage while retaining optimum product accessibility..

 We can customize all products according to customers’ requests.
